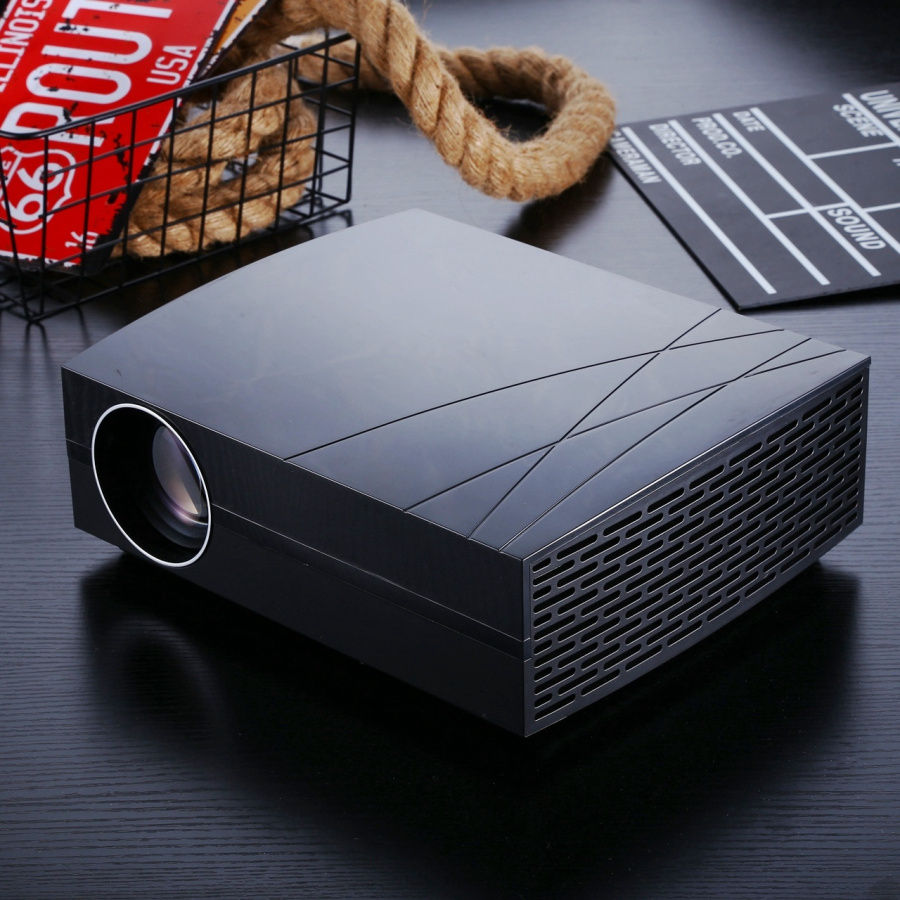

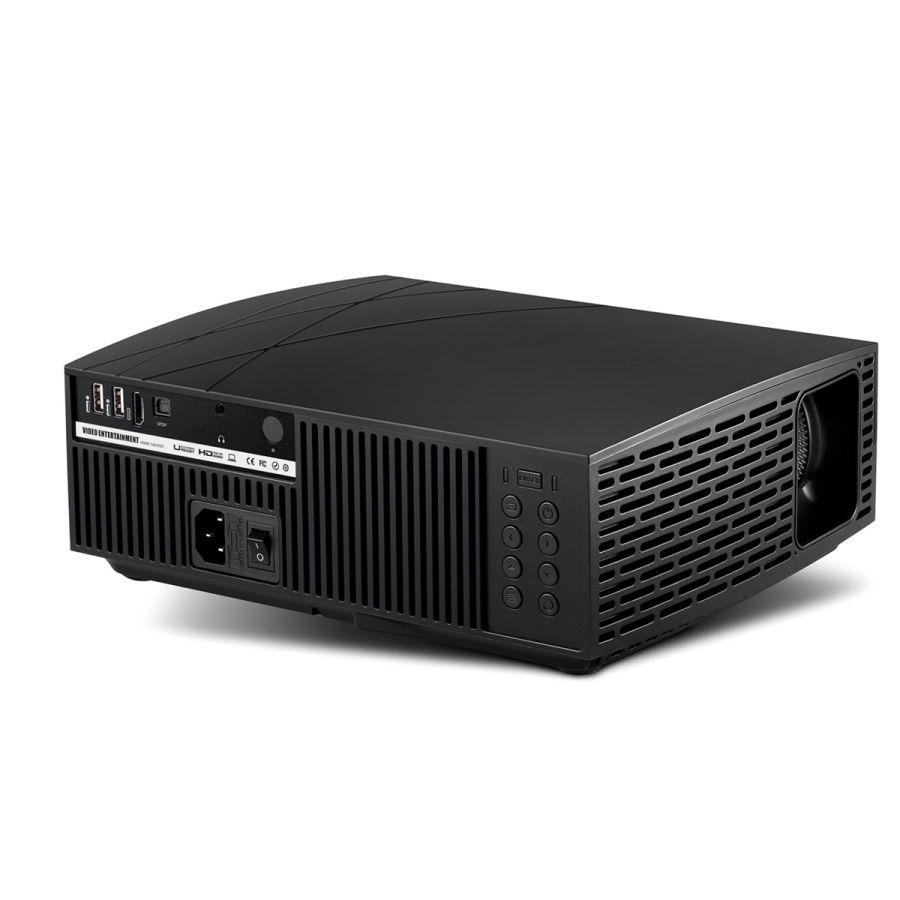

Winait 3800 Lumens LCD Projector
The Winait Home Cinema 3800 delivers a gorgeous image in 1080p SDR and Full HD. This projector adopts the latest LCD technology with advanced LED light sources, making it a perfect gift for all ages! It has an advanced built-in speaker system that offers excellent sound quality without connecting external speakers.
It is easy to operate with HDMI, VGA, USB, Micro SD, and RCA AV interfaces. This projector supports a wide connection with standard devices such as PCs, laptops, game consoles, and smartphones.
Technical Specifications
Product Highlights
• Cinema-style stereo mixing
sound,independent speaker
cavity
• Unique industrial design fordigital projector
Product Type
HOME Theater Projector
Configuration Type
Basic Version
Hardware Main Chip
MStar V56
Physical Resolution
HD Ready / 1280x800 Pixels
Lamp Life and Type
LED Light Source,above 30,000Hours
LED Luminous Efficiency
3800ansi Lumens Light e
Efficiency
Utilization--3800 ansi Lumens
Peak Brightness
390 Lux
Contrast Ratio
2200:1/static,10,000:1/Dynamic
Max. Supported Resolution
full HD (1920 x 1080P) @60Hz
Aspect Ratio
Native 16:9, Compatible 4:3
Display Type
Single LCD Panel Hybrid LED
Optical Engine
LCD Size
5.8" Liquid Crystal Display
Projection mode
Front & Rear,Support Ceiling by
Hoisting(M4 x4)
Throw Ratio
1.38:1 (200cm@64inch; 250cm@81inch;
300cm@100inch;356cm@120inch;
400cm@134inch)
Image Size (Diagonal)
28"~280"
Projection Distance
1.2~7.5m
Best Screen Size/Distance
60"~100" / 2.2~3.0m
Support Screen Flip
Up, Down, Left and Right
Projection Lens
Manual Lens / Focus
Keystone Correction
Vertical: +/-15° / Manual Focus
I.R (remote control receiver)
x2 (Front, Facing User & Back)
Speakers
8Ω,5W x2 (Speaker Module with
Super Stereo Sound Quality)
Video Compatibility
SDTV (480i, 576i) / EDTV (480p, 576p) /
HDTV (720p, 1080i, 1080p),
NTSC (M, 3.58/4.43 MHz),
PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports--I / O
audio Out x1; HDMI x1; USB x2; SPDIF x1;
OSD Menu language
23 country Language
Movie Format
Support
MPG,AV,TS,MOV,MKV,DAT,MP4,VOB /1080P Level
• Audio format :MP3,WMA,AAC,M4a(aac)…
• Picture format:JPG,JPEG,BMP,GIF,PNG,GIF
formats picture browsing
Dimensions
(W x D x H)
29x 24 x 10 cm
Noise Level
32dB (Acceptable range)
Power
Supply: AC 90-240V, 50/60Hz
Consumption: 170W
Warranty
1 Year projector
Package Contents
1 Projector
1 Quick Start Guide
1 Remote Controller
1 AC Power Cord
1 F20 with Lens Cover
