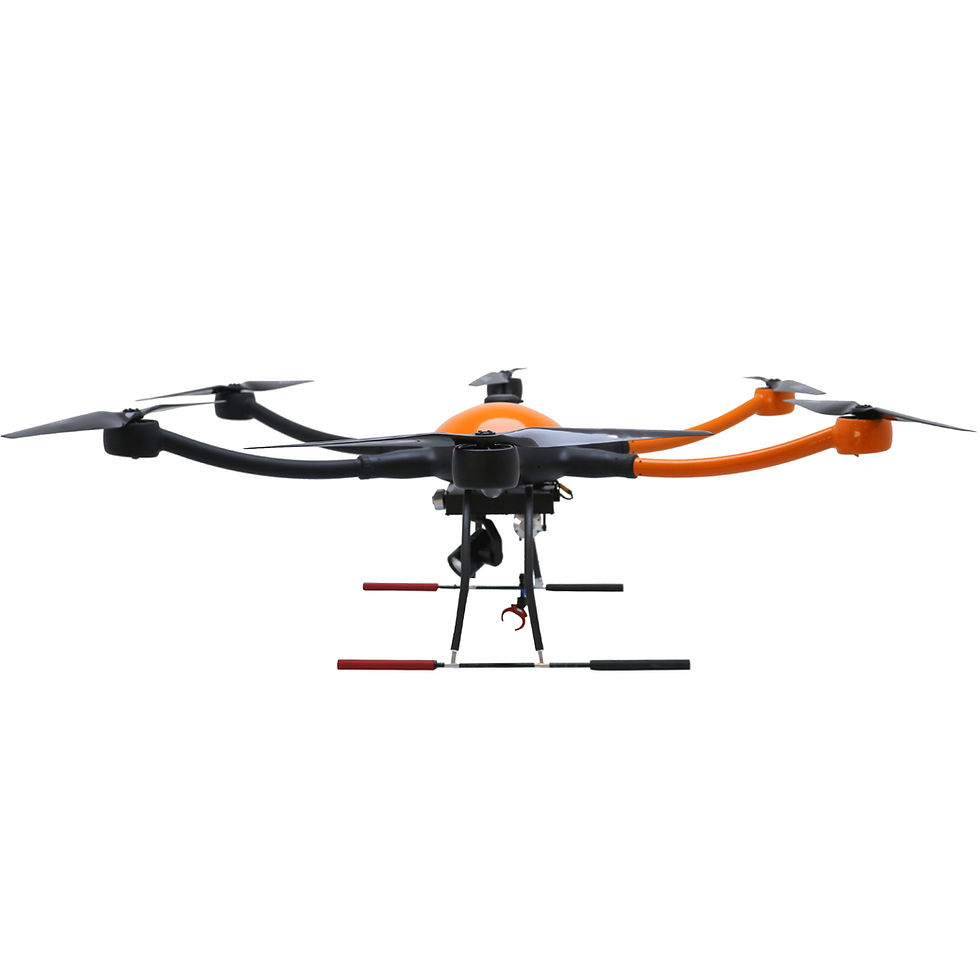

BROUAV PCU-12 Border Patrol Drones
The PCU-12 over-airline UAV display guide rope is the preface of the tension frame circuit. It has gone through the stages of manpower deployment, airship deployment, and paramotor deployment, and its technology has its own characteristics. The machine show has excellent technology in terms of safety, operability, stability, and ergonomics. The PCU-12 ultra-aviation wired drone is a major trend in the development of guide rope deployment in the future, and the operating cost of the drone is low, no driver is required, and the use of manual deployment guide rope is greatly reduced Security Risk.
Technical Specifications
Specifications
Overall Length
2340mm
Overall Width
2340mm
Overall Height
530mm
Max Take Off Weight
26kg
Max Mission Capacity
12kg
Max Flight Duration
75 minutes
Max Flight Height
500m
Safe Take Off and Landing Wind Speed
≤6 Level
Overall Size
198x178x105mm
Material
7075 Aviation Aluminum
Weight
1 kg
Rated Power
30w
Rated Brightness
4000LM
Spot Diameter
3m
Color Temperature
6500k
Effective Distance of Illumination
300m
Linear Axis of Rotation
-
Axis of Rotation
360°
Pitch Axis
360°
Overall Size
177*110*103mm
Weight
1.1kg
Working Voltage
12v
Motor Power
22w
Motor RPM
6000rpm/min
Output RPM
120rpm/min
Reduction Ratio
1:50
Max Capacity
6kg
Motor Torque
1956mnm
Drop Rope Speed
10m/min
