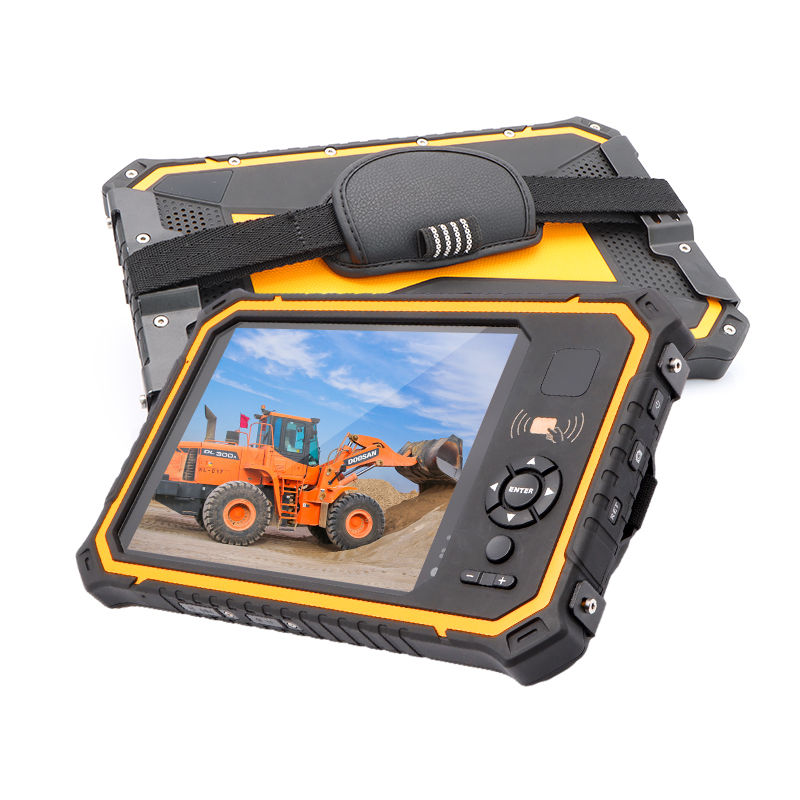

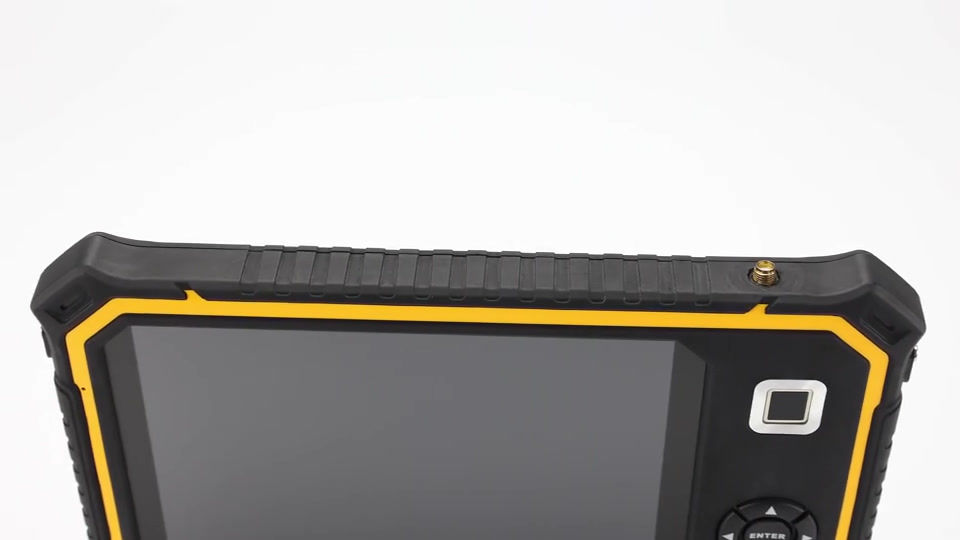

HUGEROCK T80V2 Industrial Tablet

HUGEROCK T80V2 Industrial Tablet

SKU: EJ-C211026-ABS-MOQ1-HGRCK-TBLT-33567
$1,352.00Price
Excluding Tax |

HUGEROCK T80K series is an industrial-grade GNSS/RTK ruggedized tablet and high-precision positioning board that supports GPS, GLONASS, Galileo, and the Beidou system of navigation. With the new operating system, this tablet has an external helical antenna. This product will provide you with an effective solution for data acquisition applications.



The 10-core 2.4 GHz A72 processor and an ultra-bright full HD display have a full range of uses. It is remarkably convenient for the fast transmission and storage of various types of data. A widely used product in multiple fields. A professional-grade full-band RTK module with 432 signal channels.



Uses multi-mode and high-performance algorithms, mobile stations, and handheld switching through software configuration, providing powerful RTK solutions. The advanced process technology improves computing performance while significantly reducing the operating power consumption.

  • Technical Specifications

    Hardware
    CPU
    ARM A72 2.4GHz Deca -core
    GPU
    Arm Mali-T880 MP4
    RAM
    6G
    Internal Memory
    128G
    External Memory
    Micro SD card ( T-FLASH card),
    max 128GB
    Main Camera
    13.0MP(AF) with flash led
    Sub Camera
    5.0MP
    Battery
    10000mAh
    Display
    7.9 inch IPS/AFFS 768*1024 industrial
    420CD/M2 Sunlight -Readable
    Touch Panel
    Capacitive/frosted tempered film supports
    glove touch/spray/active capacitive pen
    IO/Sensor/Navigation
    SIM Card
    1.8/3.3V SIM card
    TF Card
    Micro SD card ( T-FLASH card) ;
    max 128GB
    Data Interface
    USB Type-c 24pin
    support OTG
    Gravity Sensor
    support
    Motion Sensor
    support
    Direction Sensor
    support
    Magnetic Field
    support
    Gyro Sensor
    support
    Rotation Vector
    support
    Light-sensor
    support
    Acceleration Sensor
    support
    Charger
    5.0V 2A-10W
    Navigation
    Unicore(UM4B0) + Multi-mode
    multi-frequency four-arm spiral
    omnidirectional antenna
    Appearance
    Size
    256*159*23mm(L×W×H)
    Weight
    1015g
    Color & Material
    Black & Yellow
    Communications &
    Networking
    Phone Call
    GSM /WCDMA/TD-SCDMA/
    CDMA 1X/VoLTE
    2G
    GSM/CDMA 1X/EDGE
    /GPRS/WAP
    2G Band
    GSM(B2/3/5/8)
    3G
    WCDMA 3.75G (HSDPA+ 42.2Mbps,
    HSUPA+ 11.5Mbps),TD-SCDMA,
    EVDO
    3G Band
    WCDMA(B1/2/5/8)
    TDSCDMA(B34/39)
    Evdo: BC0/BC1
    CDMA: BC0/BC1
    4G
    FDD: 150Mbps down, 50Mbps UP
    TDD: 150Mbps downlink ,
    50Mbps uplink
    4G Band
    TD-LTE(B38/39/40/41);
    FDD LTE(B1/2/3/4/5/7/20)
    WI-FI
    Dual-band (2.4GHz/5Ghz) single
    stream 802.11 a/b/g/n/ac
    Bt
    4.0 Low Energy (LE)
    Industrial & Reliability Design
    Shake-proof
    1-19Hz/1.0mm; 19-200Hz/1.0g
    Dropproof /IK
    MIL-STD-810G/Method516.6/
    Procedure IV & Touch Panel
    IK05
    Waterproof
    Class 6 ( IEC 60529 )
    Dustproof
    Class 6 ( IEC 60529 )
    Reliability
    MTBF>5000h;MTTR
    Operating Temperature
    -20°C to 55°C
    Storage Temperature
    -40°C to 80°C
    RH
    5% to 95%
    Operating Altitude
    Max: 4,500 m(15,000 feet)
    Certification/OS/Software
    Certification
    3C /FCC/CE/ROHS/IP65
    (IEC 60529)
    Language
    English, Spanish, Portuguese
    (Brazil),
    Malay, Thai, etc.
    OS
    Andriod 6.0/8.1



    Warranty Terms/OEM
    Warranty
    24 months
    OEM/ODM
    Support
  • Package Contents

    1 Tablet

    1 USB Cable

    1 Charger 5V 2A

    1 Antenna

    1 Manual

    1 Screen Protector

    1 Packing Box
