HUBSAN ZINO Mini Pro (64/128GB)
The world’s first drone with vision obstacle avoidance under 250g, with advanced 3D space perception algorithms that enable the camera to capture more than 600k space feature points with depth extraction and calculation reaching 15 metes of cognitive distance. With a 1/1.3 inch CMOS sensor, supports smooth 4K/30fps video H.265/HEVC 200 mbps and 48m photos, f/1.85 super large aperture, 2.4um mixed large pixel, and built-in eMMC (64g/128g) that enables you to share your video to media easily. Capture higher dynamic range and colors, optimizing your low-light shots. ZINO MINI PRO applying the newest AI tracking algorithms (ATVT 3.0) with a huge improvement in tracking latency and accuracy, can locate the figure and animals or moving vehicles easily and automatically.
Technical Specifications
AIRCRAFT
Color
Gray
Size (L x W x H)
Expand: 202.54*161.2*61.6mm
Folding: 137*88*61.6mm
Folding (including blades): 137*94*61.6*Diagonal Wheelbase
220mml
Maximum Current
16A
Take Off Weight
249 grams (Europe, America, China)
200 grams (Japan)Maximum Ascending Velocity
3 m/s (N) 4 m/s (S) 2 m/s (F)
Maximum Descending Velocity
3 m/s (N) 3.5 m/s (S) 1.5 m/s (F)
Maximum Horizontal Flight Speed
10m/s (N, No wind at sea level)
16m/s (S, No wind at sea level)Maximum Take-off Altitude
4000 meters
Maximum Anti-wind Capability
Grade 5 wind (8.5~10.5m/s)
Maximum Tilt Angle
40° 25° (N) 15° (F)
Satellite Navigation System
GPS/GLONASS

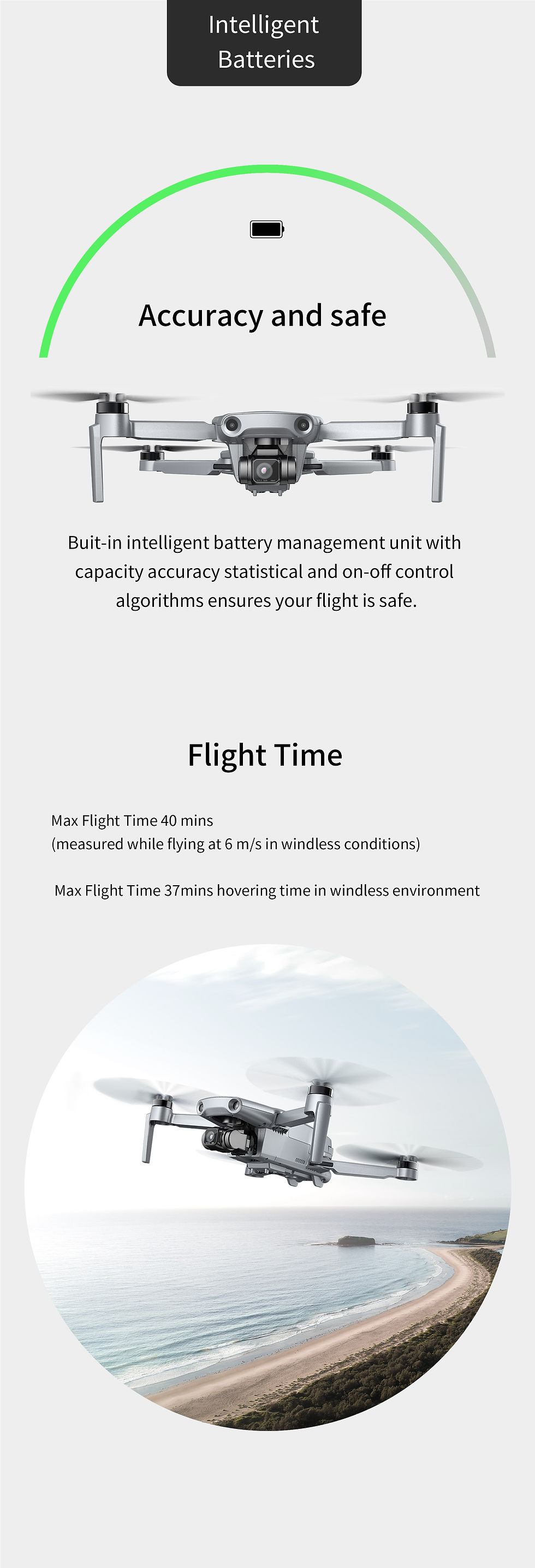

Duration of Flight
40 Minutes (Measured under normal temperature and no wind conditions, at a flight speed of 25km/h)
CAMERA
SMOS Image Sensor
1/1.3 inch CMOS sensor
2.4um mixed large pixelLens Specification
FOV 84°
Aperture f/1.85
EFL: 6.8mm
Focus point 0.5m to infinity
Distortion: <1.5%Maximum Photo Size
8000 x 6000
Maximum Video Encoding Capacity
4K@30fps
Video Resolutions
4K: 3840 x 2160 @ 30fps
2.7K: 2720 x 1530 @ 30/60fps
FHD: 1920 x 1080 @ 30/60fpsShutter Speed
3-1/8000s
Video Bitrate
100Mbps-200Mbps
Photo Format
JPEG
Video Format
MP4 (H.265/HEVC)
Firmware Upgrade
APP online upgrade
Support Memory Type Card
built-in eMMC 64G/128G
REMOTE CONTROLLER
Color
Gray
Display
Highlight LED Display
Operating Temperature
-10° to -60°C
Max Operating Distance
FCC: 10km
CM: 6KM; SRRC: 6kmBattery Type
1 x Built-in
Battery Capacity
3350 mAh
Buzzer
Support
Support Mobile System
Android, IOS
Continuous Working Time
2.5h (Normal Flight Time)
Connectivity
1 x Lightning
1 x Micro-USB
1 x USB Type-CGIMBAL
Gimbal Mode
HY817D
Number of Axis
3 (Pitch, Roll, Yaw)
Angular Speed
120°/s
Control Range
Pitch: -120° to 45°
Roll: ± 35°
Yaw: ± 35°INTELLIGENT FLIGHT BATTERY
Chemistry
Lithium-ion battery (LiPo)
Capacity
3000 mAh
Nominal Voltage
3.6x2=7.2V
Charging Voltage Limitation
8.4V
Discharge Limitation
8C
Charging Time
90 minutes
Battery Weight
101.84g
Working Temperature
0°C~ 50°C
Charging Environment Temperature
0°C~ 40°C
Smart Battery Balance
Support
Voltameter Management
Support
Automatic Discharge Protection
support
