Surround Sound Speaker
YX-01P is a 5.1.4 Dolby atmos speaker system designed for the modern family's living room. It applies the latest audio-video technology, such as Dolby Atmos, DTS:X, and 4K. Sound comes from all directions, including overhead, to fill your room with clarity, richness, detail, and depth. It creates a powerful entertainment experience allowing you to bring the cinema home!
Technical Specifications
Parameters

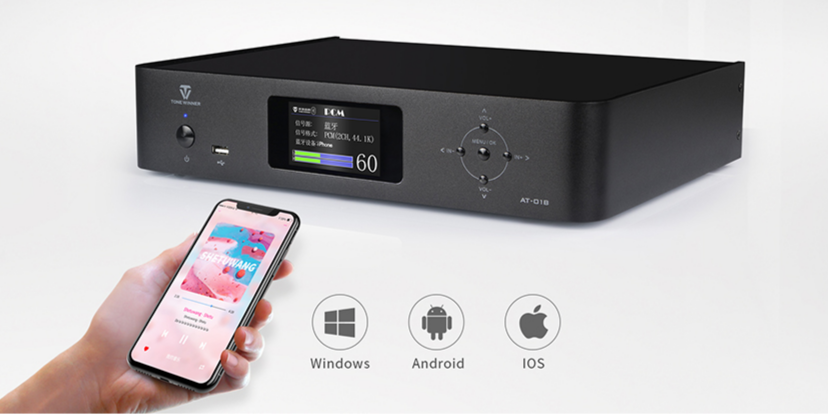

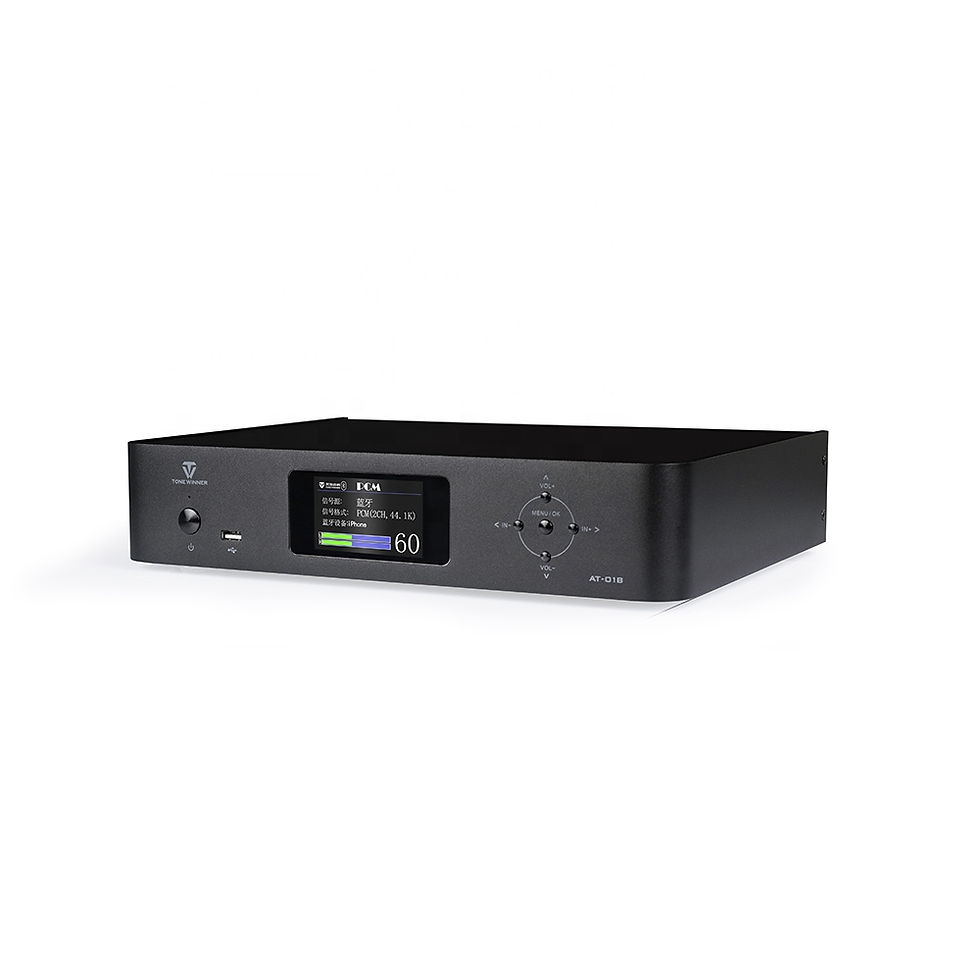

AT-01B
(amplifier)
Frequency
120Hz-20KHz（normal）
20Hz-120Hz（SW）
Power
(5+2)*22W/8Ω, 70W/2Ω (SW)
Power Input
~110V/~220V
Size
330x72x264mm
G.W
2.6kgs
Parameters
AS-01C
(center)
AS-01W
Drivers
3＂×2
8＂×1
Impedance
8Ω
2Ω
Frequency
120Hz-20KHz
50Hz-4kHz
(tweeter)
Power
Output
10~40W
10~100W
Size
222×112×79mm
260×310×310mm
G.W
1.2kgs
6kgs
Parameters
AS-01F
(main speaker)
AS-01P
(wireless
surround)
AS-01S
(wired
surround)
Driver
2.25＂×1+3＂×2
2.25＂×1+3＂
×2
3＂×2
Impedance
8Ω
8Ω
8Ω
Frequency
120Hz-20kHz,
120Hz-20kHz
120Hz-20kHz
250Hz-
20kHz
（top）
250Hz-20kHz
（top）
Power
Output
10～40W, 10～30W(top）
10～40W, 10～30W(top）
10~40W
Size
313×1146×313 mm
313×1146×313 mm
313×1086×313mm
G.W
3.8kgs
3.8kgs
3.8kgs
