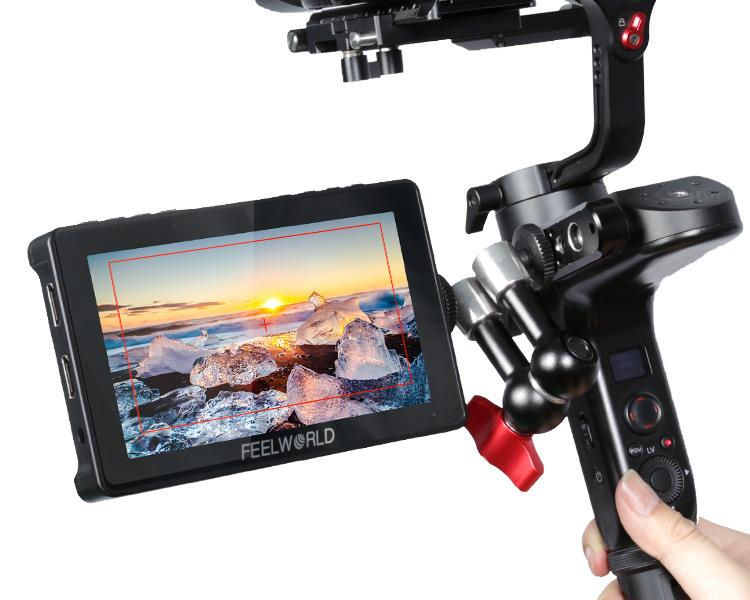

FEELWORLD F5 Pro V2 5.5 Inch Touch Screen 3D LUT DSLR Camera Field Monitor
The F5 Pro provides a sharp image, with native 1920x1080 high resolution, REC-709 color calibration, make you enjoy sharper and richer colors image.The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc. can help you accurate exposure and focus. F5 Pro V2 allows you to load internally up to custom LUTs (Up to 32 user files can be imported), looks or profiles at any time via the TYPE-C interface to USB . Slot and instantly select between them, maintaining creative intent, always.
Technical Specifications
DISPLAY SPECIFICATIONS
Screen Size
5.5" IPS Touch Screen
Resolution
1920x1080 pixels
Pixel Pitch
0.0639 (H) x 0.0213 (W) mm
Aspect Ratio
16:9
Brightness
500cd/m²
Contrast Ratio
1000:1
Backlight
LED
Viewing Angle
80°/80°(L/R) 80°/80°(U/D)
INPUT/OUTPUT
Input
1 X HDMI, 1 X Type-C
Output
1 X HDMI, 1 X DC Output
Audio
Stereo Headphone
· 480i/576i/480p/576p
· 1080i (60/59.94/50)
· 720p (60/59.94/50/30/29.97/25/24/23.98)
· 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
· 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
GENERAL
Input Voltage
DC7~24V
Power Consumption
≤9W
Power Connector
DC
Working Temperature
-20°C~50°C
Storage Temperature
-30°C~60°C
Install Way
¼-20 thread points
Unit Size
148Lx93Hx20D (mm)
Battery Plate
F970 Battery Plate
Unit Weight
245g
COMPATABILITY
Compatibility Battery
Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series.
