BROUAV D22L-4 Agriculture Farming  Drone

BROUAV D22L-4 Agriculture Farming Drone

SKU: ER-C211111-ABS-MOQ#1-UAV-112173
$23,960.00Price
Excluding Tax |

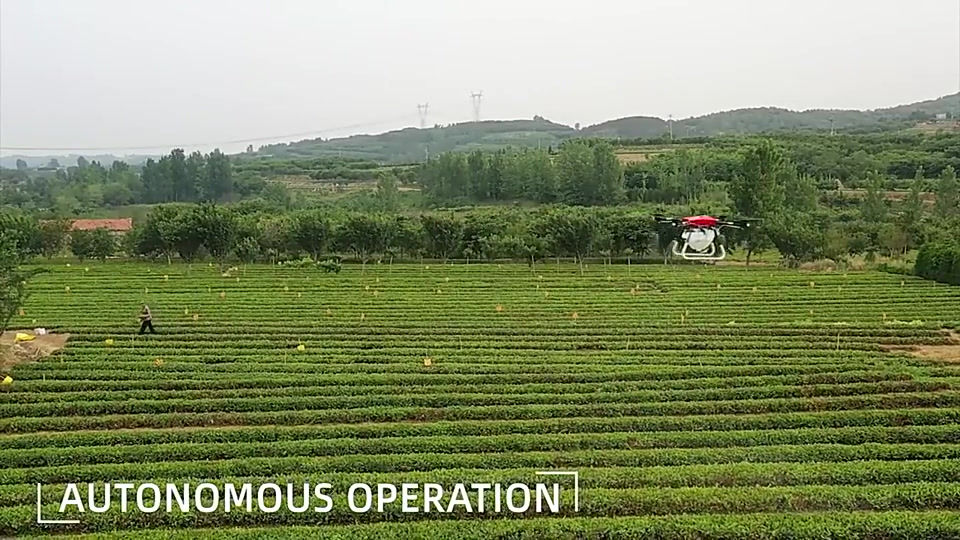

D22L-4 can spray orchards through intelligent control. The device can operate autonomously through flight control navigation, and the operator can grasp the current status and progress of spraying at any time through the display. D22L-4 accelerates the formation of an aerosol stream by airflow, which increases the penetration of medicine drops to a certain extent, saving labor costs and labor intensity while being more humane.

Features:

  • D22L-4 is not restricted by terrain and height. It takes off from the field to implement crop operations.
  • Handheld ground station equipment can be used for operation. UNID D22L-4 uses long-distance remote control operation and flight control navigation autonomous operation function. Before spraying operations, map the route of the map and enter it into the internal control system of the ground station. With the spraying device, the spraying operation is completed autonomously.
  • While the aircraft is spraying, the progress of the spraying operation can be observed in real time through the display interface of the handheld ground station.
  • The higher and more uniform the coverage density of the spray solution on the unit area, the better the control effect.
  • The spray drop test of liquid medicine reflects an advantage of the loss of pesticides by spraying with drone. The UNID D22L-4 has 8 spiral wings, and the operating height is relatively low. When the liquid spray drops out from the sprayer, It is accelerated by the downward airflow of the 4 rotors to form an aerosol stream, which directly increases the penetration of the medical liquid mist droplets to the crops, reduces the degree of pesticide loss, and the chemical liquid deposition amount and medical liquid coverage are better than conventional Therefore, the control effect is better than traditional, and it can also prevent pesticides from causing pollution to the soil.
  • Technical Specifications

    Specifications



    Product material

    Aviation carbon fiber + aviation aluminum

    Product expansion size

    1990mm x 1990mm x 660mm

    Product folding size

    660mm x 660mm x 660mm

    Packaging size

    750mm x 750mm x 750mm

    Maximum takeoff weight

    44KG

    Aircraft weight

    16KG

    Aircraft medicine box capacity

    22L

    Flight altitude

    ≤30 meters

    Fly time(unloaded)

    20~25 minutes

    Fly time(loaded)

    10~13 minutes when fully loaded

    Flight speed

    1-10 m / sec

    Structure life span

    ≥10 years

    Spray width

    4-6 meters

    Hovering in the air

    Hovering in any direction

    Spray flow

    3-5L/min water pump adjustable

    Spray system

    Imported high pressure anti-floating atomizing nozzle

    Atomization point size

    60~90μm

    Fly control

    Industrial Version GPS and Controller

    Spray efficiency

    ≥8 hectares/hour

    Motor speed

    5000 rpm

    Safe takeoff and landing wind speed

    ≤5

    Power system

    50.4V power polymer computer battery

    Charger

    AC Input100-240V

    Lithium-polymer battery

    22000mAh x 1
